AD4000 AD4001 AD4002 AD4003 AD module 16 bit ADC high-speed data acquisition

Name: AD4000 AD4001 AD4002 AD4003 AD module 16 bit ADC high-speed data acquisition
Brand: MicroHello
SKU: AD400X-001
Price: 72.5 USD
Availability: InStock

SKU: AD400X-001

0.0 (0)

0 Sold

$72.50 ~~$49.00~~

AD4000 AD4001 AD4002 AD4003 AD module 16 bit ADC high-speed data acquisition

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 18/16 bits
Number of channels: Single channel differential input
Maximum sampling rate: 2/1MHz
Range of collected voltage: ± Vref
Special: Powered as low as 1.8 V

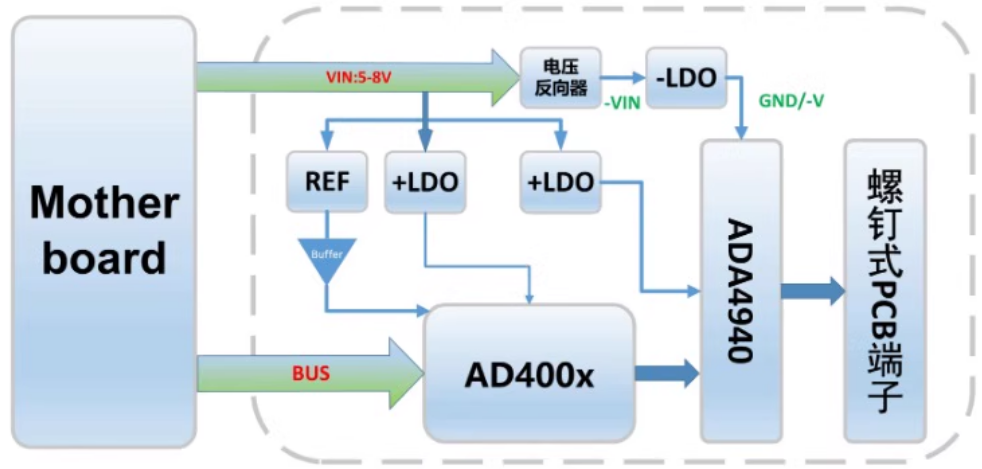

Block Diagram

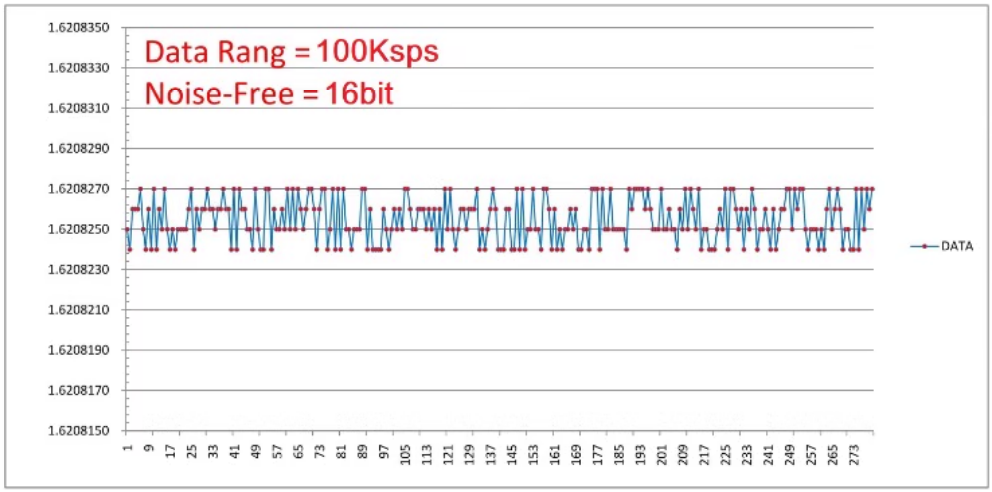

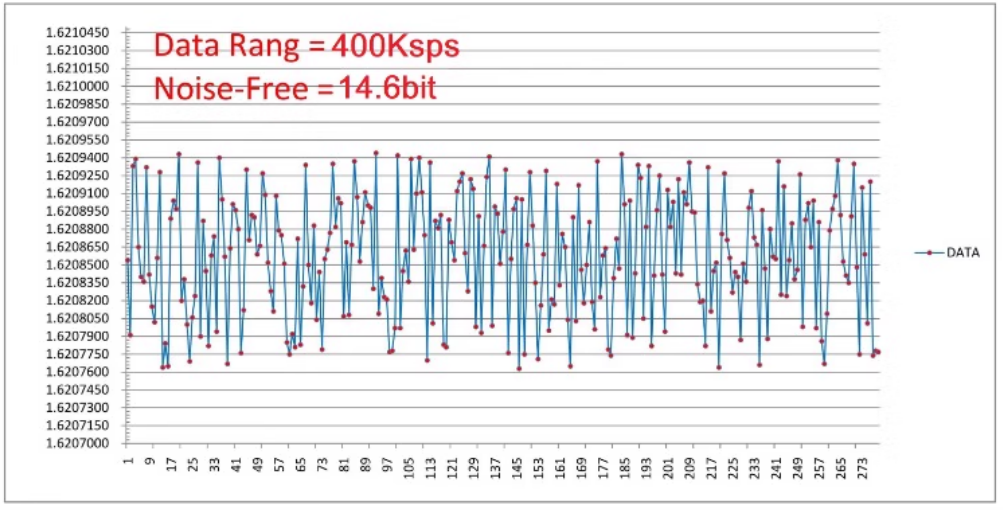

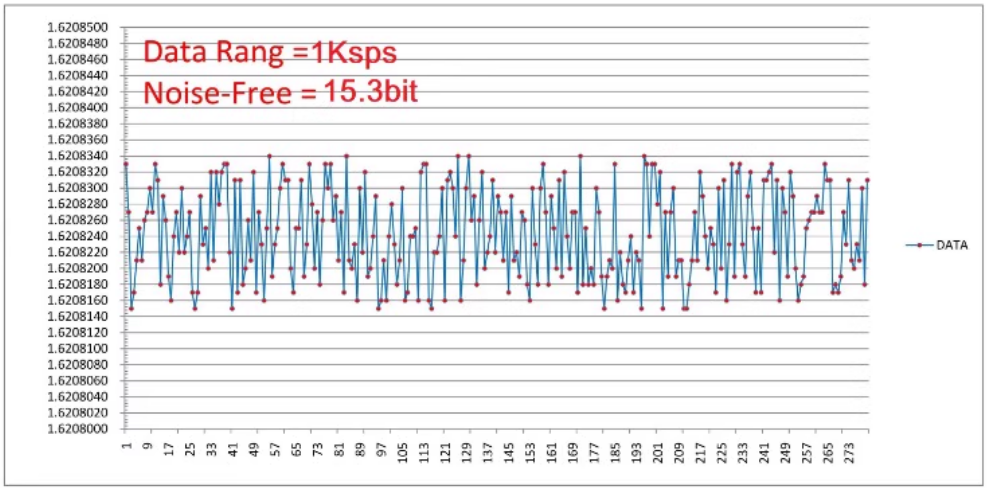

Performance Testing(Takes AD4003 for example)

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
