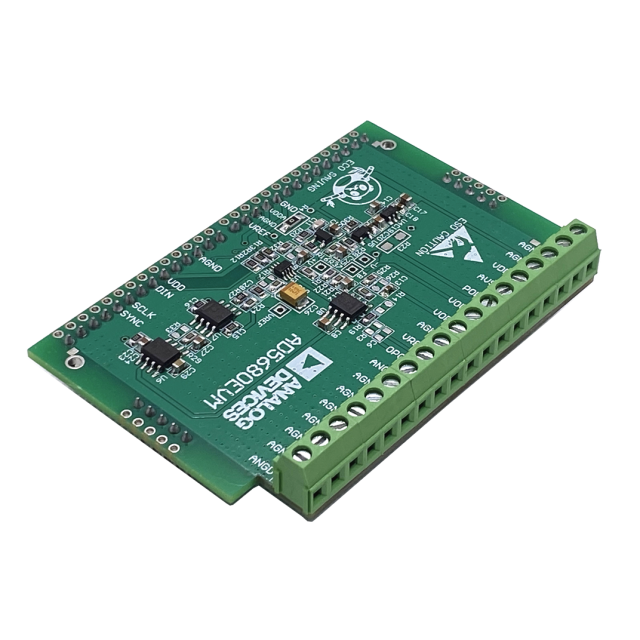

AD5680 module DAC 18 bit DAC high-precision digital to analog conversion process control

Name: AD5680 module DAC 18 bit DAC high-precision digital to analog conversion process control
Brand: MicroHello
Price: 25.9 USD
Availability: InStock

0.0 (0)

0 Sold

$25.90 ~~$49.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 18 bits
Number of channels: single channel
Sampling rate: 12.5kHz
Output voltage range: 0-VDDr ± VDD/2
Supply voltage: 4.5 Vto 5.5 V

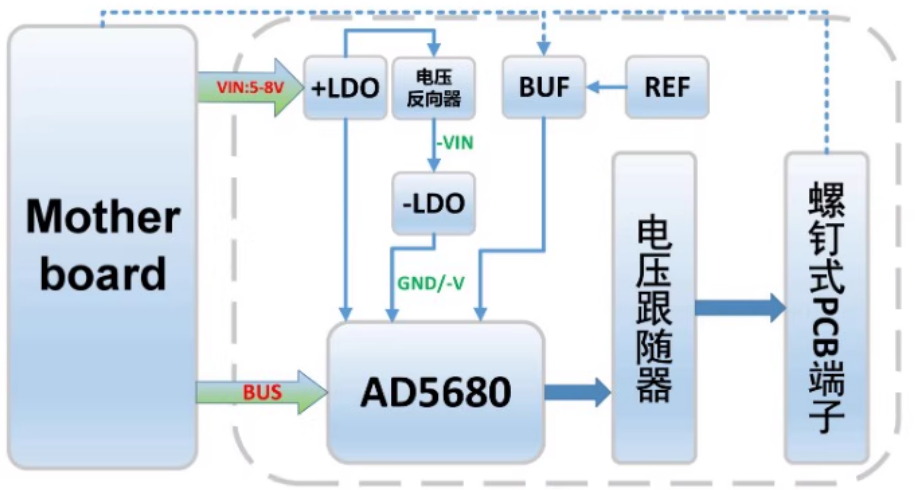

Block Diagram

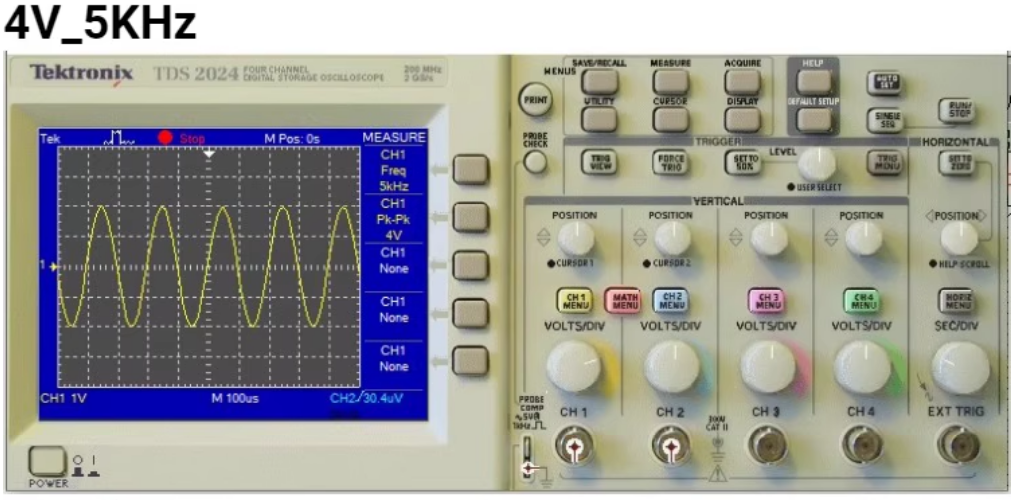

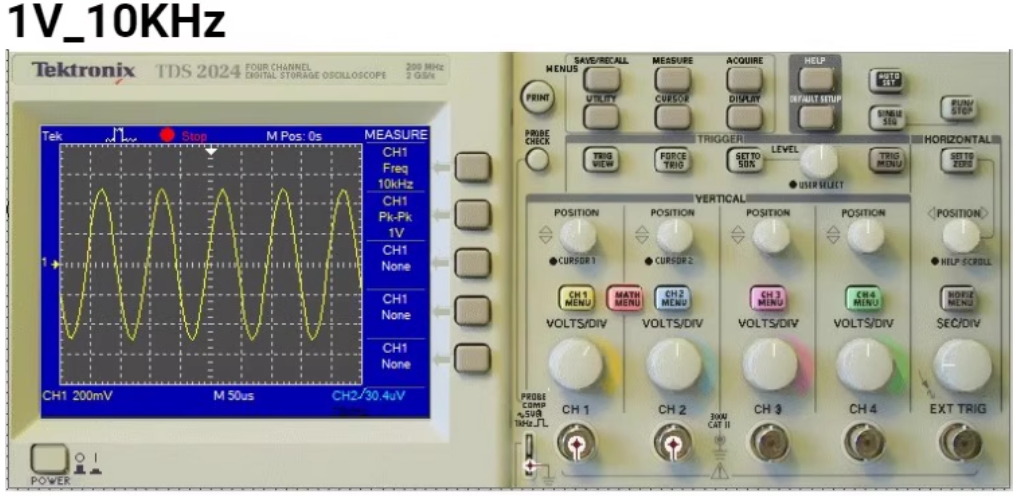

Performance Testing

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC/DAC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC/DAC data collection. After placing an order, please contact us via email to request this routine and other related information.
