AD7177-2 ADC module 10Ksps 24Bit 32Bit differential bipolar input

Name: AD7177-2 ADC module 10Ksps 24Bit 32Bit differential bipolar input
Brand: MicroHello
SKU: AD7177-2-0001
Price: 105 USD
Availability: InStock

SKU: AD7177-2-0001

0.0 (0)

0 Sold

$105.00 ~~$199.00~~

AD7177-2 ADC module 10Ksps 24Bit 32Bit differential bipolar input

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

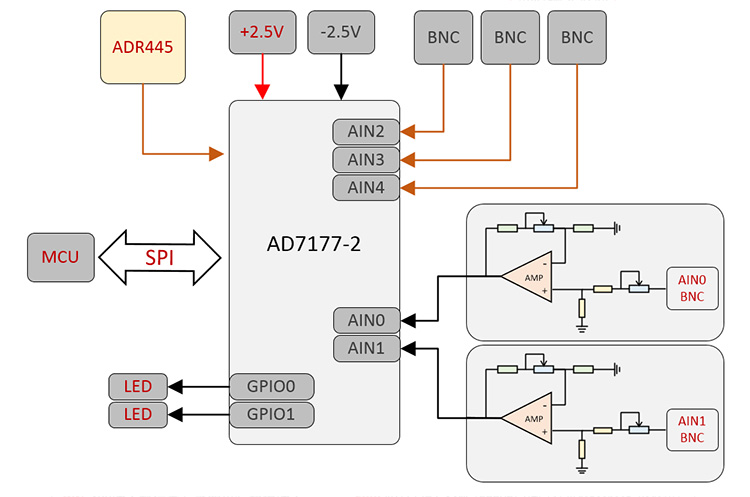

Complete AD7177-2 application solution.
Achieve 24.6Bit noise free resolution at 5sps.
Single power supply with a wide range of 2.7-8VDC, with a working current of 75mA when powered by 5V.
The maximum data update rate is 10Ksps, and the setup time is 100us.

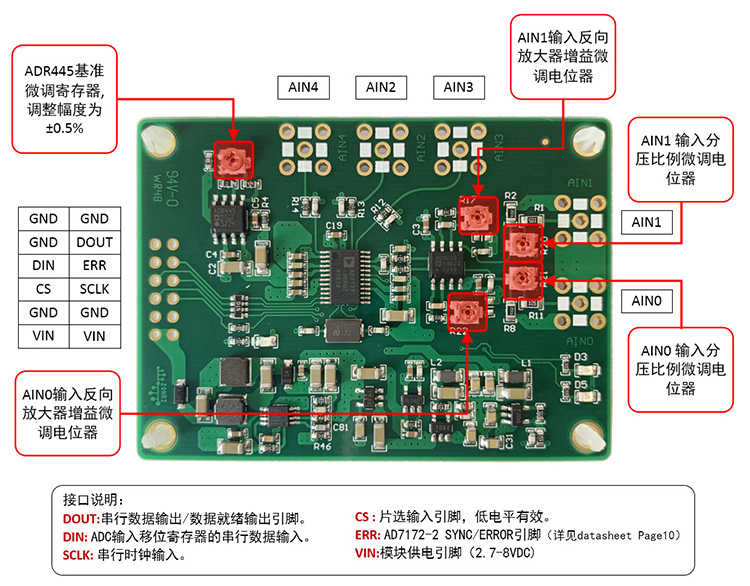

The input voltage division ratio can be fine tuned to correct common mode errors.
Onboard dual power rails, supporting true differential and bipolar inputs.
The default differential input range is ± 21.5V, and the common mode input range is 10.75V.
Adjustable (within a range of ± 0.5%) reference source.
