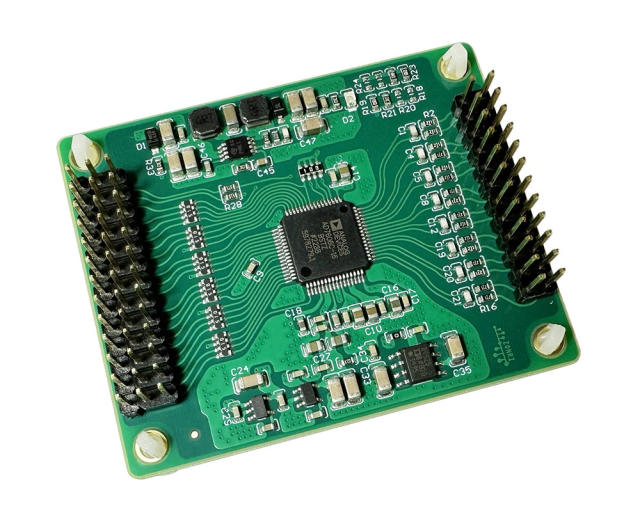

AD7606C-16 8CH/16Bit DAS 1Msps Parallel Synchronous Sampling Bipolar High Bandwidth ADC Module

Name: AD7606C-16 8CH/16Bit DAS 1Msps Parallel Synchronous Sampling Bipolar High Bandwidth ADC Module
Brand: MicroHello
SKU: AD7606C-16-0001
Price: 99 USD
Availability: InStock

SKU: AD7606C-16-0001

0.0 (0)

0 Sold

$99.00 ~~$179.00~~

AD7606C-16 8CH/16Bit DAS 1Msps Parallel Synchronous Sampling Bipolar High Bandwidth ADC Module

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

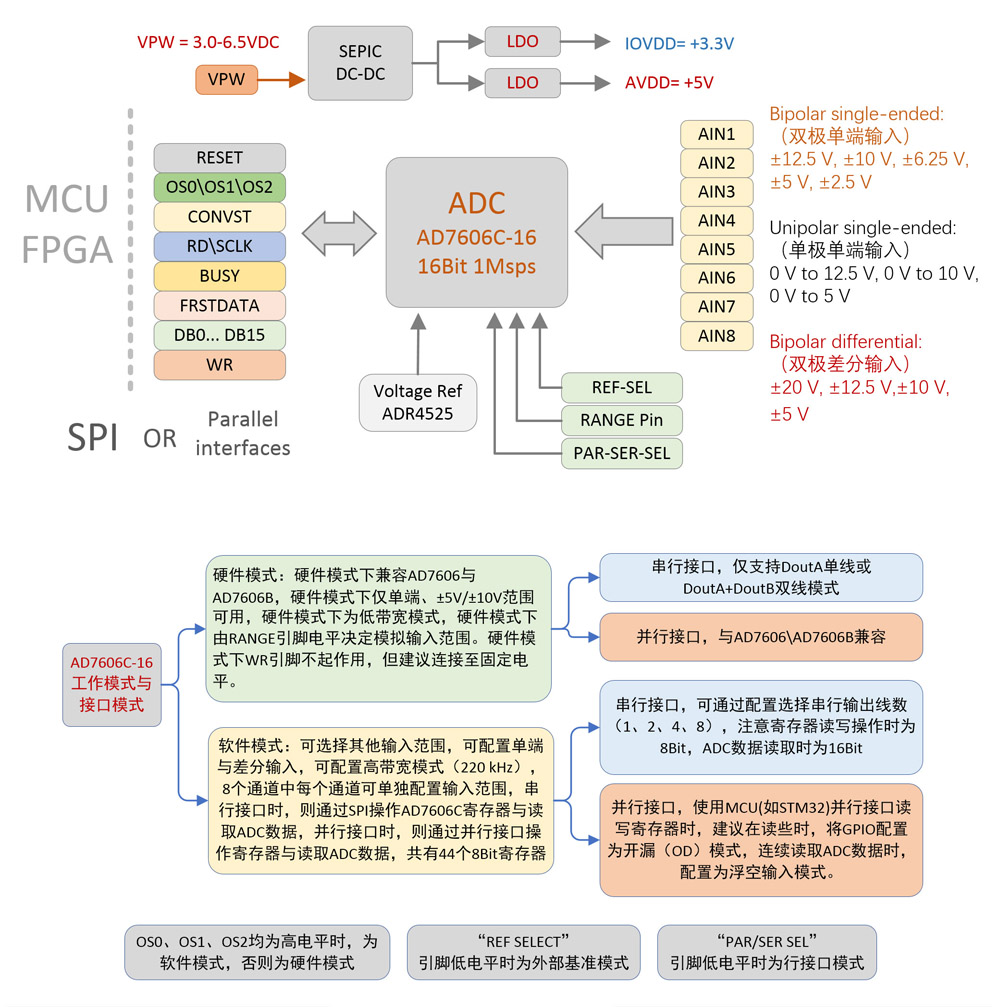

16 bit 8-channel single ended, differential 1Msps parallel ADC module
Single power supply with wide voltage range of 3.0-6.5VDC, 5V power supply, typical operating current of 82mA at 1Msps
Differential input range: ± 20 V, ± 12.5 V, ± 10 V, ± 5 V
Single ended input range: ± 12.5V, ± 10V, ± 6.25V, ± 5V, ± 2.5V, 0V-12.5V, 0V-10V, 0V-5V
Equipped with high bandwidth mode (-3DB 220KHz)
Flexible digital filter configuration, software mode with a maximum oversampling factor of 256
Simulate input impedance of 1M Ω
Parallel or serial interface level: 3.3V TTL
