AD7705 AD7706 module 24 bit high-precision ADC thermocouple PT100 RTD

Name: AD7705 AD7706 module 24 bit high-precision ADC thermocouple PT100 RTD
Brand: MicroHello
SKU: AD770x-001
Price: 22 USD
Availability: InStock

SKU: AD770x-001

0.0 (0)

0 Sold

$22.00 ~~$38.00~~

AD7705 AD7706 module 24 bit high-precision ADC thermocouple PT100 RTD

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 16 bits
Number of channels: 2 differential/3 single ended
Maximum sampling rate: 500Hz differential
Input voltage range: ± VREF/gain
Programmable gain: 1-128

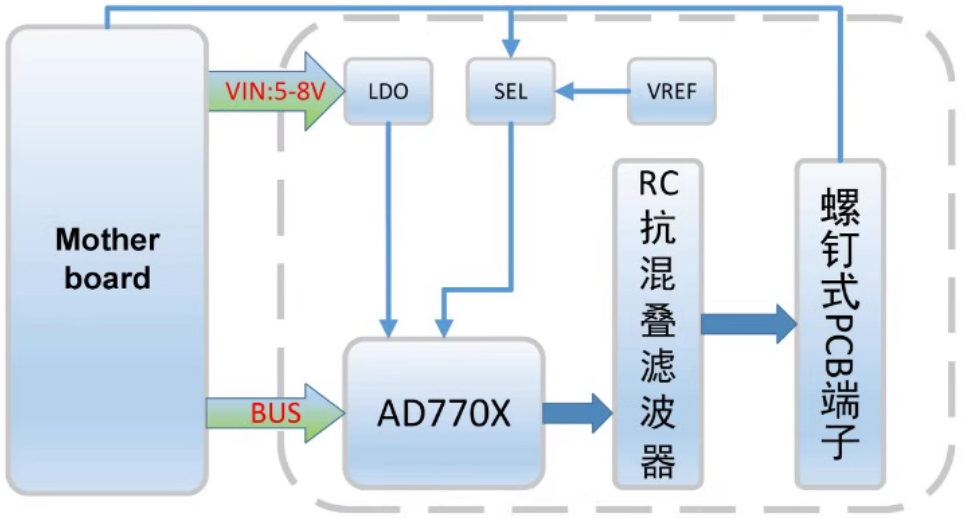

Block Diagram

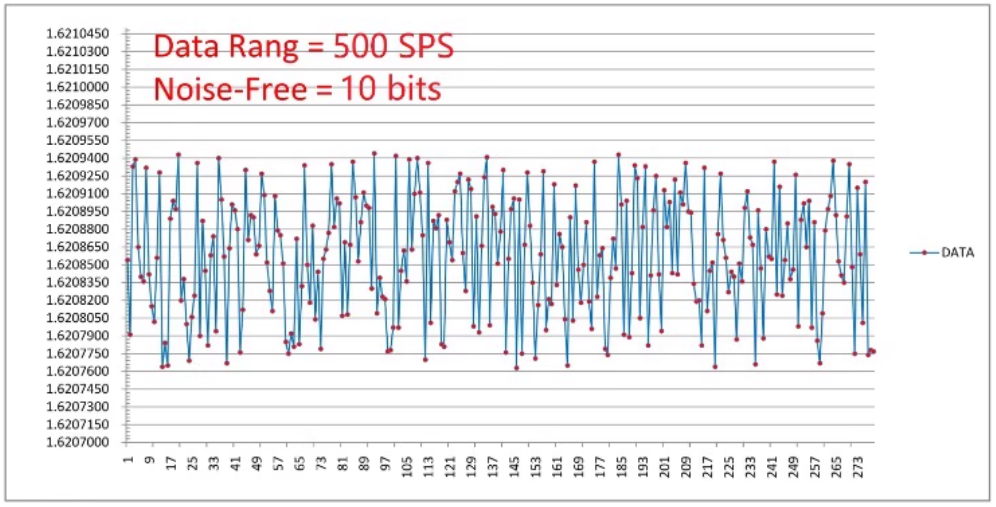

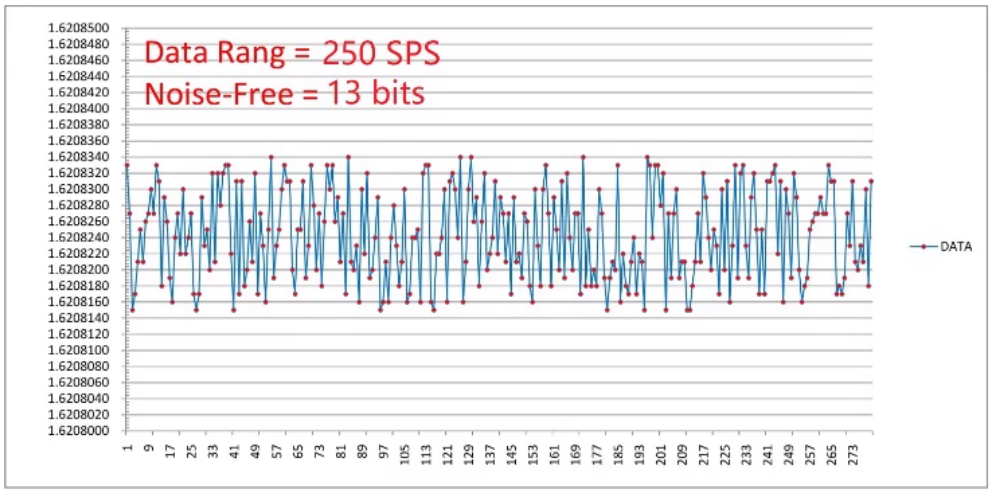

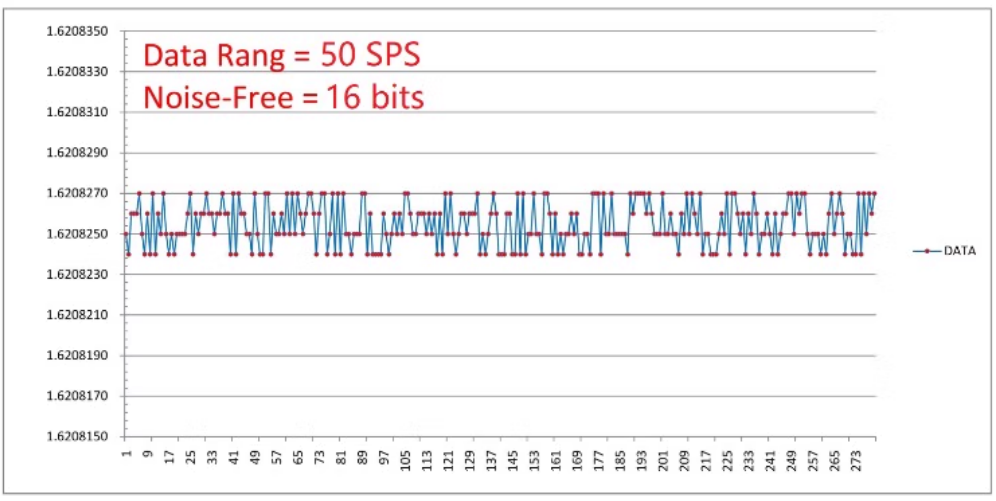

Performance Testing

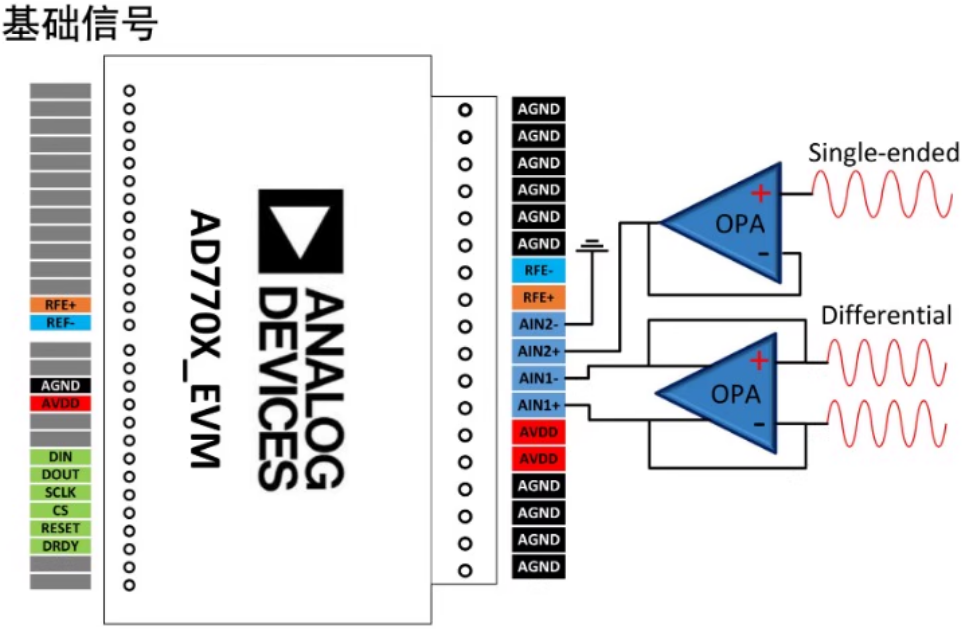

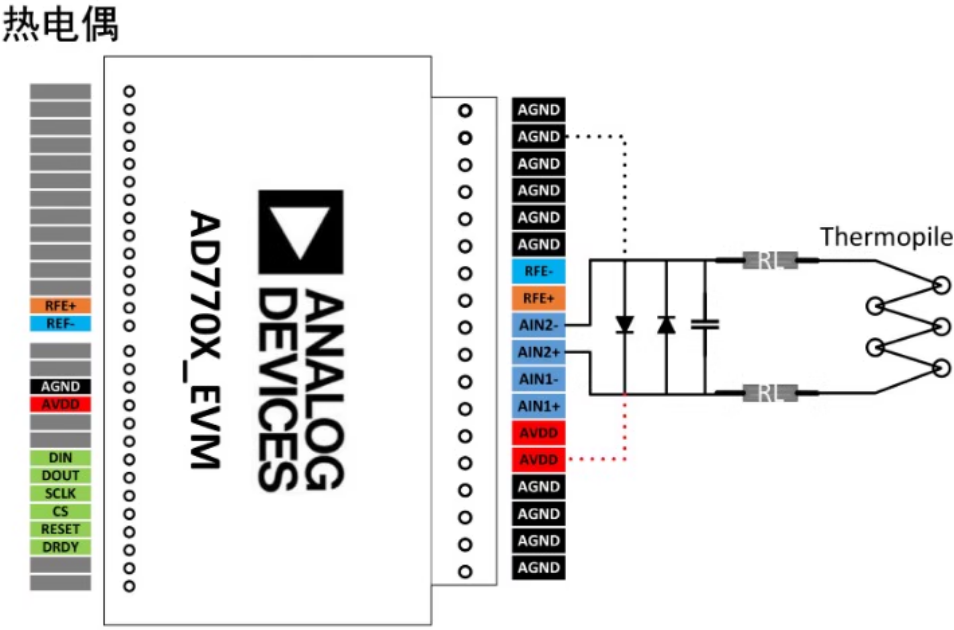

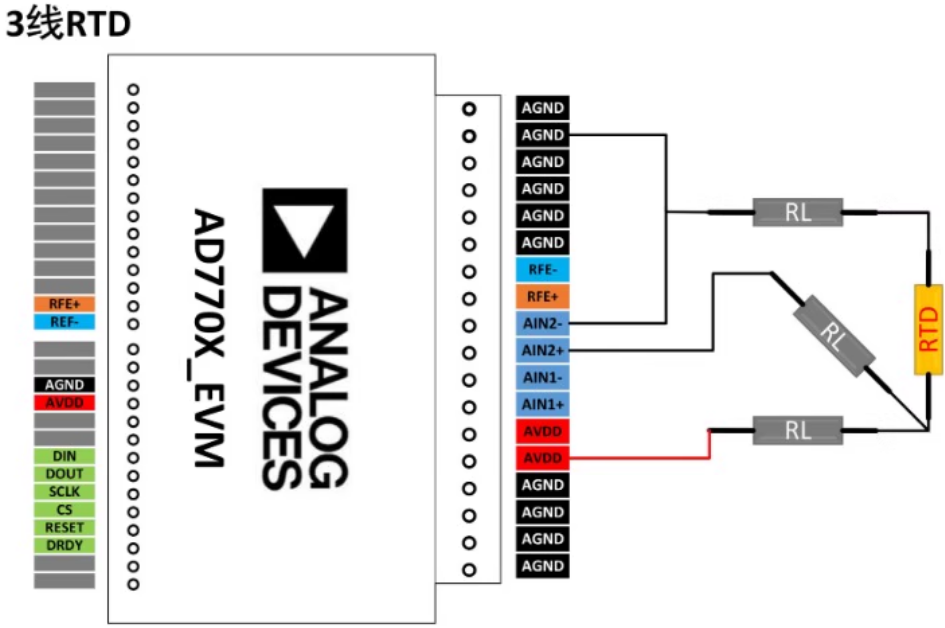

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
