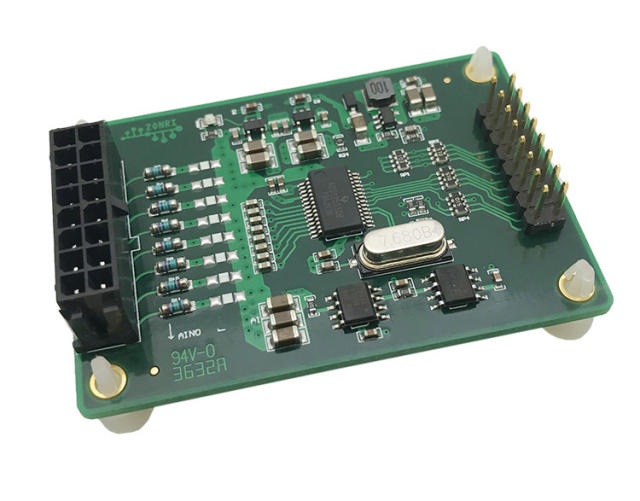

ADS1256 data acquisition sampling module 24 bit ADC module single ended/differential input

Name: ADS1256 data acquisition sampling module 24 bit ADC module single ended/differential input
Brand: MicroHello
SKU: ads1256-0001
Price: 28 USD
Availability: InStock

SKU: ads1256-0001

0.0 (0)

0 Sold

$28.00 ~~$55.00~~

ADS1256 data acquisition sampling module 24 bit ADC module single ended/differential input

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

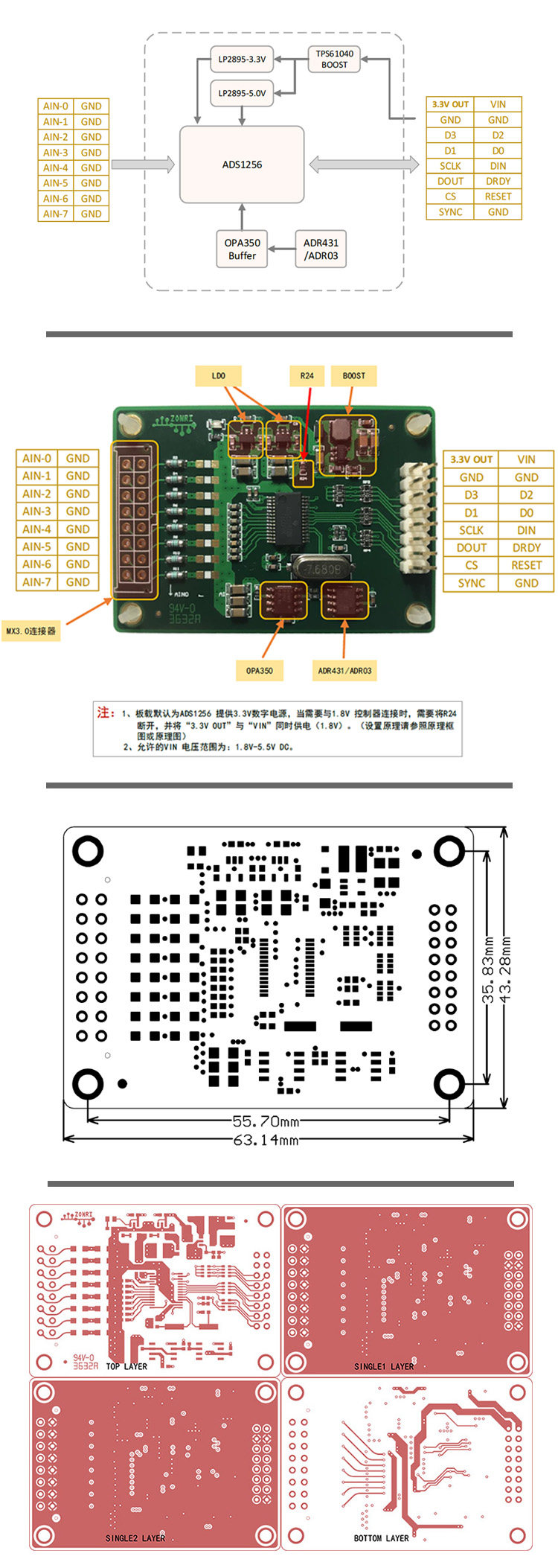

Complete ADS1256 application circuit module.
Onboard Boost boost circuit, 3.3V LDO and 5.0V LDO, capable of external power supply from a single power source.
The power and digital level range is 1.8V – 5.5V (default 3.3V).
Onboard low-temperature ticket benchmark source.
Single ended input or differential input can be used, and input attenuation can be configured. Default no attenuation (voltage divider resistor air soldering).
The onboard crystal frequency is 7.680MHz.
The analog signal input interface connector is MX3.0-16Pin.
FAQ
Question: What is the reason for the occurrence of "channel data interference" during the use of ADS1256 module?
Answer: The reason for the occurrence of "channel data interference" or "data misalignment" is due to errors in the timing of MUX switching and conversion. Multi channel acquisition requires switching the MUX first, and then starting the conversion; In continuous conversion mode, the first data needs to be discarded after switching the MUX.
