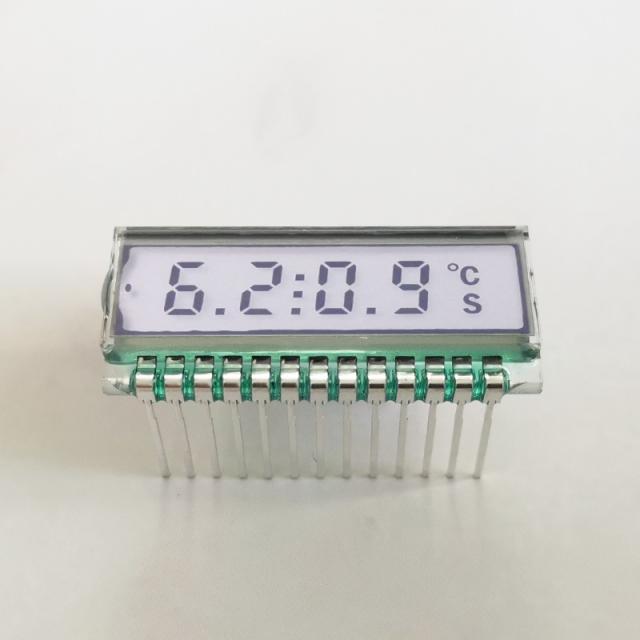

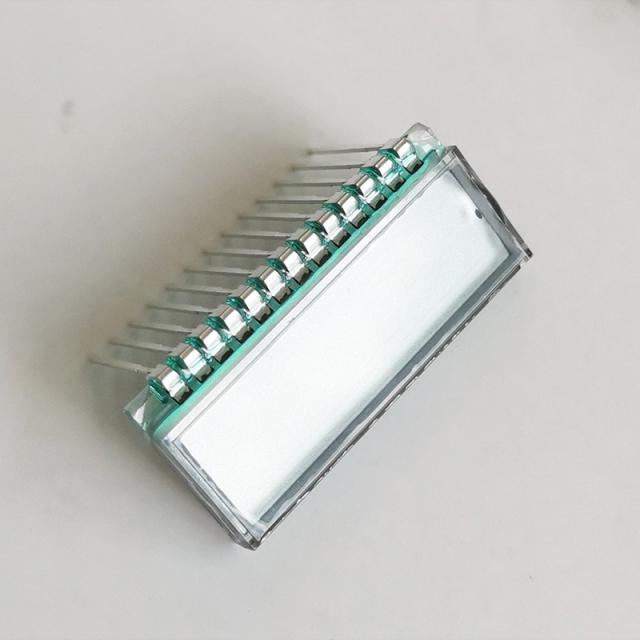

GDC0209 low voltage drive 4-bit segment LCD display screen 7-segment digital tube LCD screen

Name: GDC0209 low voltage drive 4-bit segment LCD display screen 7-segment digital tube LCD screen
Brand: MicroHello
SKU: GDC0209
Price: 3.6 USD
Availability: InStock

SKU: GDC0209

0.0 (0)

0 Sold

$3.60 ~~$6.90~~

GDC0209 low voltage drive 4-bit segment LCD display screen 7-segment digital tube LCD screen

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Note:If your purchase quanlity exceeds 50 pieces, please contact us for wholesale price!If you need to add backlight, please also contact us!

Product Model: GDC0209
Dimensions: 23.0x1.0x2.8mm
View size: 20.0x6mm (0.82 inches)
Connection method: PIN (metal pin)
Perspective: 6 O'CLOCK
Drive mode: 1/4 DUTY, 1/3 BIAS
Driving voltage: 2.5V
Operating temperature: 0 ℃~60 ℃
Polarizing film type: reflective/semi transparent
Backlight: LED (optional)
