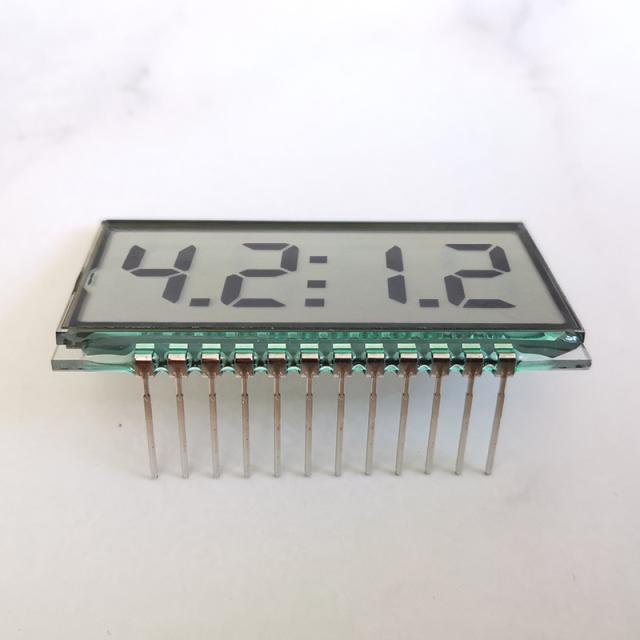

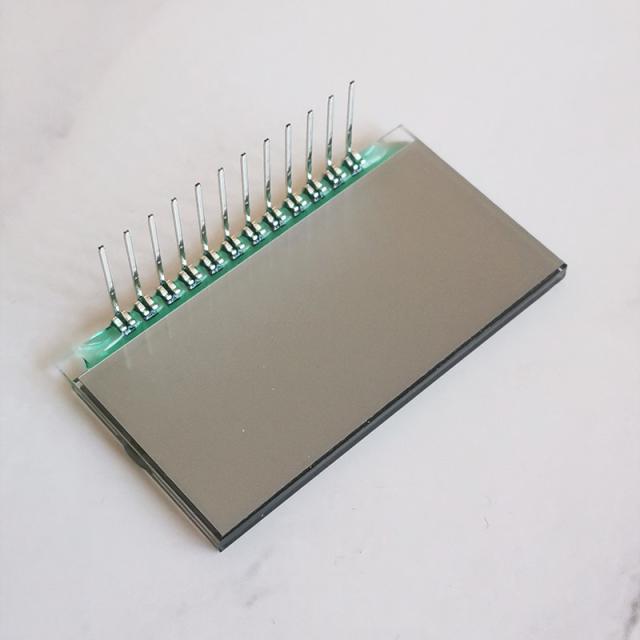

GDC04212 40 degree ultra wide temperature range LCD screen 4-bit segment LCD display screen

Name: GDC04212 40 degree ultra wide temperature range LCD screen 4-bit segment LCD display screen
Brand: MicroHello
SKU: GDC04212
Price: 4.7 USD
Availability: InStock

SKU: GDC04212

0.0 (0)

0 Sold

$4.70 ~~$6.90~~

GDC04212 40 degree ultra wide temperature range LCD screen 4-bit segment LCD display screen

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Note:If your purchase quanlity exceeds 50 pieces, please contact us for wholesale price!If you need to add backlight, please also contact us!

Product model: GDC04212
Display content: 4 digits and 8 characters
Dimensions: 42.0 × 23.0 × 2.8mm
View size: 39.0 × 16.5mm (1.67 inches)
Perspective: 6:00
Backlight: (optional, additional purchase required)
Working voltage: 3.0V
Working temperature: -40 ℃~80 ℃
Storage temperature: -45 ℃~80 ℃
Drive mode: 1/4 Duty, 1/3 Bias
Display mode: TN, positive display
Polarizing film type: semi transparent
Connection method: metal pins
