Principle Introduction:

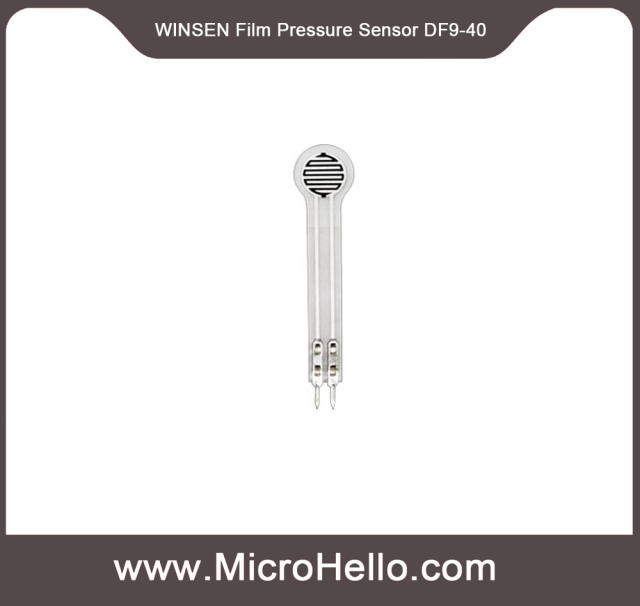

Film pressure sensor DF9-40@10kg is based on new-type nanometer pressure sensitive materials, which supplemented by ultrathin film substrate of Young’s modulus and disposable pater. It has both waterproof and pressure-sensitive functions. The resistance value of the sensor changes when the sensor perceives pressures from the outside. The pressure signal can be converted into the corresponding electrical signals with a simple circuit.
Applications :
Size can be customized.
Thickness is less than 0.3mm.
Certified by ROHS.
Technical parameters :
Tips:For more parameter information, please refer to the latest manual provided by salesman.
| Performance |
Parameter |
| Force Range |
0-10kg |
| Thickness |
< 0.3mm |
| Sensitive Point |
< 20g |
| Repeatability |
<±5.8%(50% of the load ) |
| Precision |
±2.5%(85% of the force range ) |
| Durability |
＞1 Million times |
| Initial Resistance |
＞10MΩ(Unloaded) |
| Response Time |
< 1ms |
| Recovery Time |
< 15ms |
| Testing Voltage |
DC 3.3V |
| Working Temp |
-20°C - 60°C |
| EMI |
N/A |
| ESD |
N/A |
