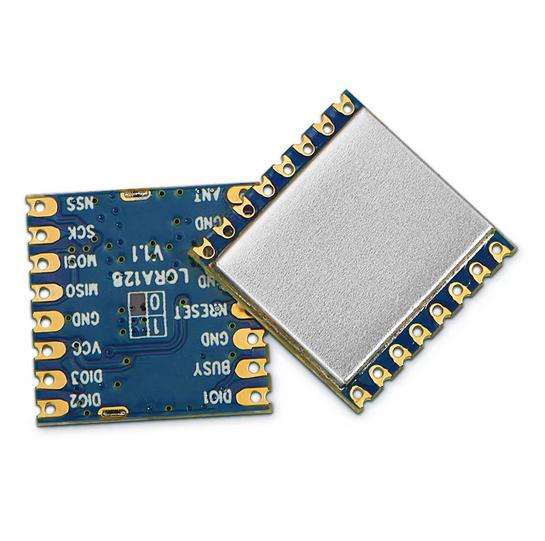

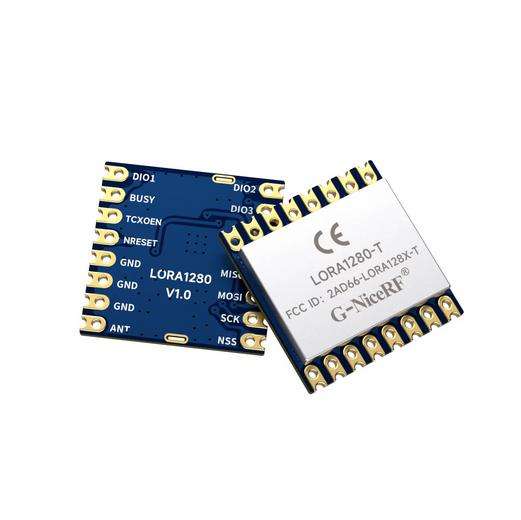

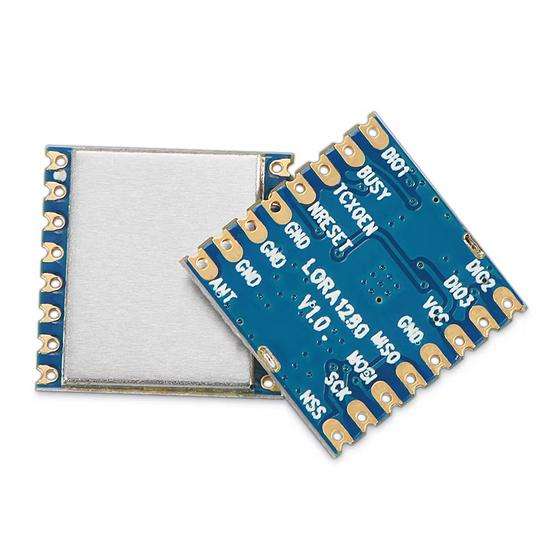

LoRa128X Series 2.4Ghz Range Measurement Wirelessly Long Distance Module LoRa1280 LoRa1281

SKU: Lora128X-001
0.0 (0)
0 Sold
$12.50 $24.00
LoRa1280 and LoRa1281 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
    This LoRa module is designed based on the original sx1280 & sx1281 radio frequency chip of Semtech in the United States. It uses LoRa's modulation mode, which improves the short communication distance of ordinary 2.4GHz modules. The high penetration performance of the 2.4GHz frequency band combined with the LoRa modulation enables the module to have high receiving sensi
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Frequency:
    Lora1280
    Lora1280-TCXO
    Lora1281
Quantity:
  • LoRa128X Series 2.4Ghz Range Measurement Wirelessly Long Distance Module LoRa1280 LoRa1281
  • LoRa128X Series 2.4Ghz Range Measurement Wirelessly Long Distance Module LoRa1280 LoRa1281
  • LoRa128X Series 2.4Ghz Range Measurement Wirelessly Long Distance Module LoRa1280 LoRa1281
  • Description
1. Overview

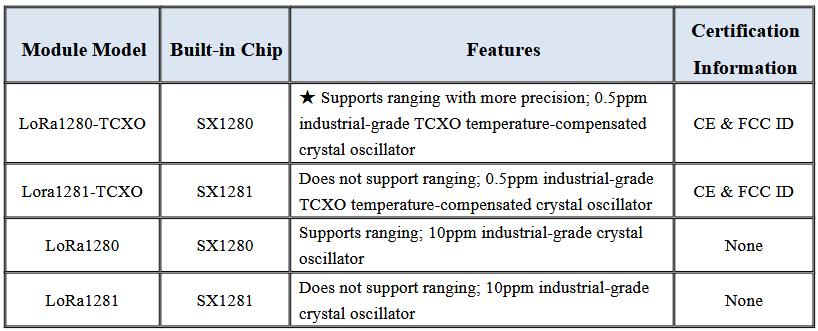

The LoRa128X series includes four modules: LoRa1280-TCXO, LoRa1281-TCXO, LoRa1280, and LoRa1281. Users can choose according to their application needs, with the specific differences as follows

This series of modules is designed based on the original sx1280/sx1281 radio frequency chip of Semtech in the United States. It uses LoRa modulation mode, which improves the short communication distance of ordinary 2.4GHz modules. The whole series of modules use a 10ppm industrial-grade crystal oscillator, and the LoRa1280-TCXO module is also specially equipped with a higher-precision industrial-grade 0.5ppm TCXO temperature-compensated crystal oscillator, which guarantees stable frequency output under harsh environments such as high and low temperature. It also has the "time of flight" function, which can realize RF ranging applications. The high penetration performance of the 2.4GHz frequency band combined with the LoRa modulation enables the module to have high receiving sensitivity and environmental anti-interference ability. The whole series of modules are widely used in applications requiring long-distance 2.4GHz transmission.
2. Features
Operating frequency range2400-2500MHz
Operating temperature range-40~+85°C
Data transfer rate0.476-202 Kbps@LoRa
Maximum output power12.5dBm
Packet communication mode (receiving FiFo 256 bytes)
Dual certification by CE & FCC
High precision crystal oscillator0.5ppm TCXO/10ppm
Operating voltage range1.8-3.7 V
Sensitivity : -132dBm@LoRa
LoRa FLRC FSK modulation
3. Applications
Wireless remote
Smart home
Tag reader
Toy control
Tire pressure monitoring
Health monitoring


Datasheet Download
