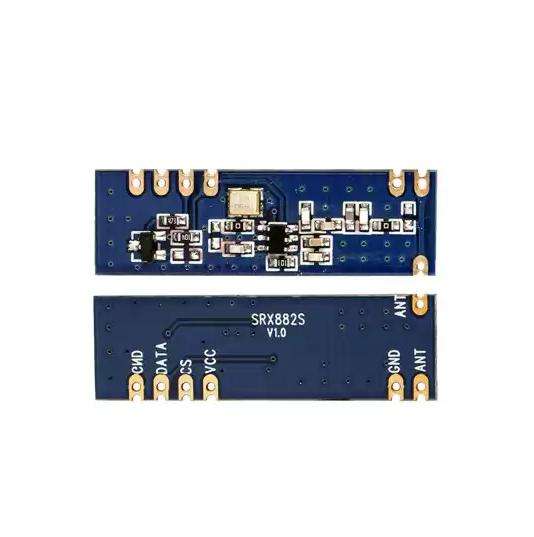

SRX882S 315 433MHz Micropower Superheterodyne Receiver Module

Name: SRX882S 315 433MHz Micropower Superheterodyne Receiver Module
Brand: MicroHello
SKU: SRX882S-002
Price: 2 USD
Availability: InStock

SKU: SRX882S-002

0.0 (0)

0 Sold

$2.00 ~~$4.00~~

SRX882S is a new 315/433MHz superheterodyne receiver module launched by NiceRF. With low power consumption, wide voltage and high sensitivity, it can be used with STX series ASK transmitter module in NiceRF. It complies with the certification of ROHS, FCC, ETSI and CE. The module is easy to use and can be connected to the micro controller directly.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

SRX882S is a new 315/433MHz superheterodyne receiver module launched by NiceRF. With low power consumption, wide voltage and high sensitivity, it can be used with STX series ASK transmitter module in NiceRF. It complies with the certification of ROHS, FCC, ETSI and CE. The module is easy to use and can be connected to the micro controller directly.
SRX882S is manufactured and tested strictly using lead-free process and complies with RoHS and Reach standards.

Parameter	Min	TP	Max	Unit	Condition
Operation conditions
Supply Voltage	2.0	3	5.5	V
Operating Temperature Range	-30		80	℃
Receiving Start Time			3	ms	@433MHz
Current consumption
Working Current		＜3		mA	@433MHz
Working Current		＜0.1		uA	@CS=0
RF parameters
Frequency Range	433.82	433.92	434.02	MHz	@433MHz
Frequency Range	314.9	315	315.1	MHz	@315MHz
Sensitivity		-107		dBm	@1Kbps
Air rate	0.1		9.6	kbps
Receiver bandwidth		200		KHz
